DCC Specialties PSXX-ARSC Power Shield Auto Reverser / Circuit Breaker / Snap
|
MSRP: $99.95
Price: $74.95
You Save: $25.00
[ 8 ] pcs In Stock

Backorders Accepted

Item Number: DSPPSXX-ARSC
Manufacturer: DCC Specialties
Manufacturer Part No: DSPPSXX-ARSC
|
DCC Specialties PSXX-ARSC Power Shield Auto Reverser / Circuit Breaker / Snap
Our next generation of auto reversing circuit breakers are on their way! The DCC Specialties PSXX-AR and PSXX-ARSC take the venerable PSX-AR that you all know and love to the next level. This re-design is based on the new PSXX circuit breaker series and combines that protection with the functionality of an auto reverser, block detector, and accessory decoder.
DCC Specialties PSXX-AR Features
- Auto reverser for loops, wyes and other reverse section scenarios
- Automatically control reverse loop turnouts
- Automatic Circuit breaker
- Accessroy decoder for turnout solenoid motors:
- Block detection
- Network Status Feedback
- Outputs for LED Indicators: Remote LEDs can be added to monitor the input/output power and the status.
- 4 Indicator LEDs on the board: Booster power (green), 2 x Block power (green), Block shorted (red)
- LED output DCC power in from booster
- LED output DCC power out to track/LED output turnout position/track phase
- LED output short circuit
- LED output block occupied
- Select Trip current values 1 – 10 in integer steps (1, 2, 3, …., 10) using CV 49
- Jumper Select Current limits of 1, 2, 3, or 4 amperes
- Power On/Off by DCC: Turn on/off output track power with your DCC Throttle!
- Manual or Automatic Reset: Automatic reset: Breaker tries to reset every 2 seconds. Manual reset: Once the breaker trips, it remains off, ensuring complete isolation of the faulty block. The breaker is reset either by a switch or by a DCC command.
- All Solid State Operation: Fast, solid state design with reliable quiet action.
- Adaptive Load Reset: Electronically determines if the overload is a real short or due to excess capacitance in sound decoders or lighted passenger cars.
- Auto Stop with DCC Reset: A photocell can be connected to a PSXX input. Normally, covering the photocell will not cause any action. If the photocell is armed with a DCC command, the PSXX will turn off the next time the photocell is covered. A DCC command can restore the track power when desired.
- Photo Cell Controlled Block Power Off: Stop position control and occupancy detection for hidden tracks.
- Block Detection: Either a photo cell or block current draw can be used to detect a train in a block and to trigger a Block Occupied output. The current trigger level is programmable.
- Block Occupied Trip point can be automatically set to compensate for current flow in unoccupied block
- Very Low Voltage Drop: Total breaker on resistance is less than 0.060 ohms, so the PSXX has a very low voltage drop even at high currents. Better than detectors that use a diode voltage drop.
- Programmable Power Up Status: When power is applied to the layout, the PSXX can be set to always turn on, always remain off [power on as needed by DCC command], or to use the power status present when the layout was last shut down.
- Network Feedback: Isolated outputs designed to provide Block Occupied, Block Shorted, and Power Status to a discrete interface for remote display or computer control.
- Will work with Digitrax LocoNet, NCE Cab Bus, ESU ECoS, and Lenz XpressNet interfaces.
- System Reset: CV63=42 sets all CVs and addresses to original factory values.
- Output for Audio Alert: An audible sounder can be added to the PSXX to provide an audible alert if there is a short.
- No Power Supply Needed: The PSXX uses the track DCC power to supply its operating power. Each PSXX draws less than 0.04 amperes.
- Easy to Install: With 4 mounting holes sized for a #6 screw.
- Flash Programmable: The PSXX firmware can be updated by Tony’s Train Exchange as new features become available or if older units need to be matched to a recent purchase.
- Discrete Input allows on/off control of track voltage for yard or other track section isolation. Compatible with any system that has a relay or isolated transistor control output including LCC, WiFi, etc. or can be used with manual toggle switch.
- +5V and Ground Outputs for powering LEDs, no resistors needed
- Power On Status can be on, off (yard or staging sections), or status at power down.
The PSXX is compatible with PSX-AR and previous generation PSX-1,-2,-3,-4 circuit breakers. If you are using both PSXX circuit breakers and PSX-AR auto reversers on a layout, make sure the PSX-AR J1 input is taking power from the J2 DCC track output of the PSXX.

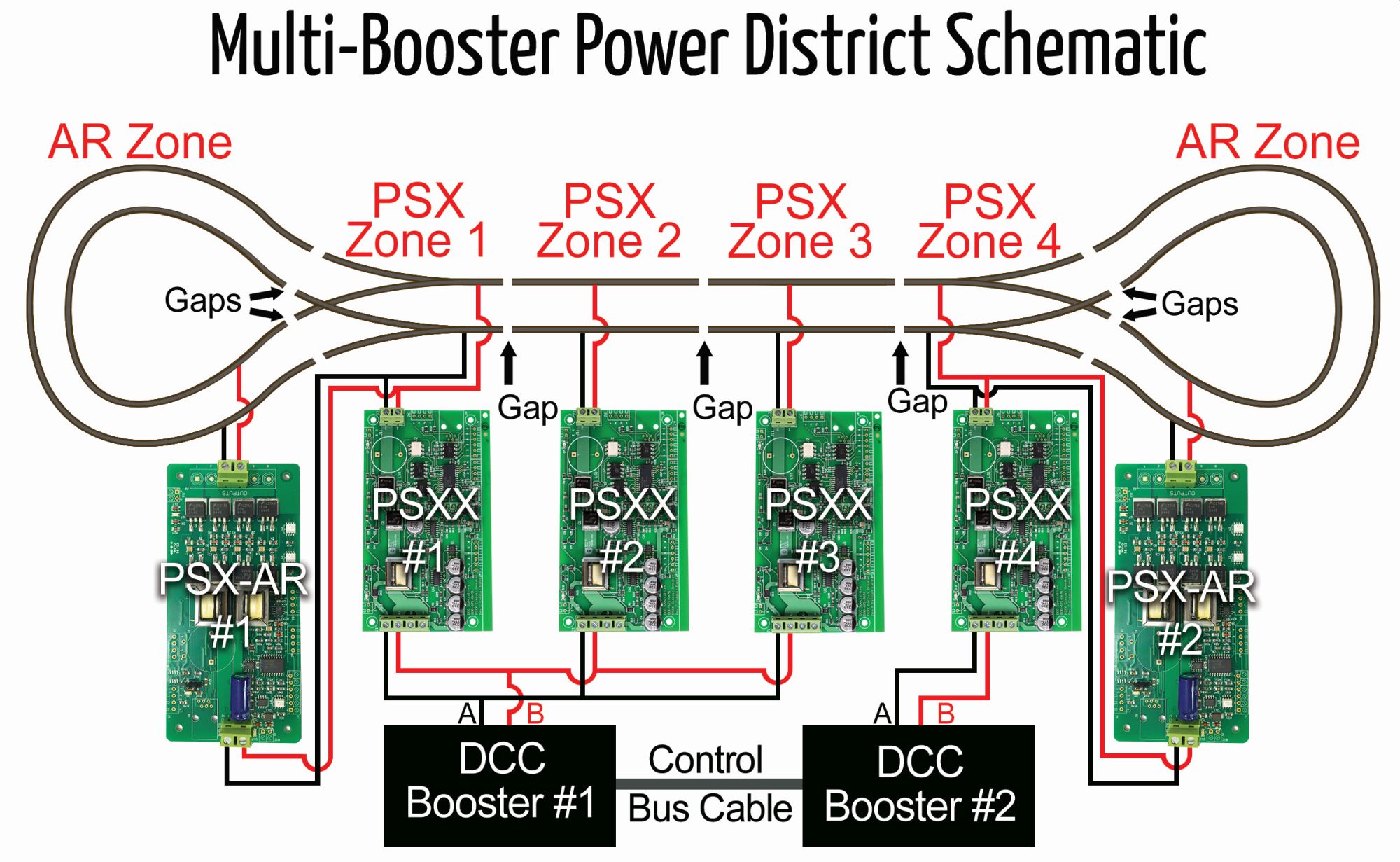

Below are some essential wiring diagrams for multiple power districts, boosters, and wyes.

|
